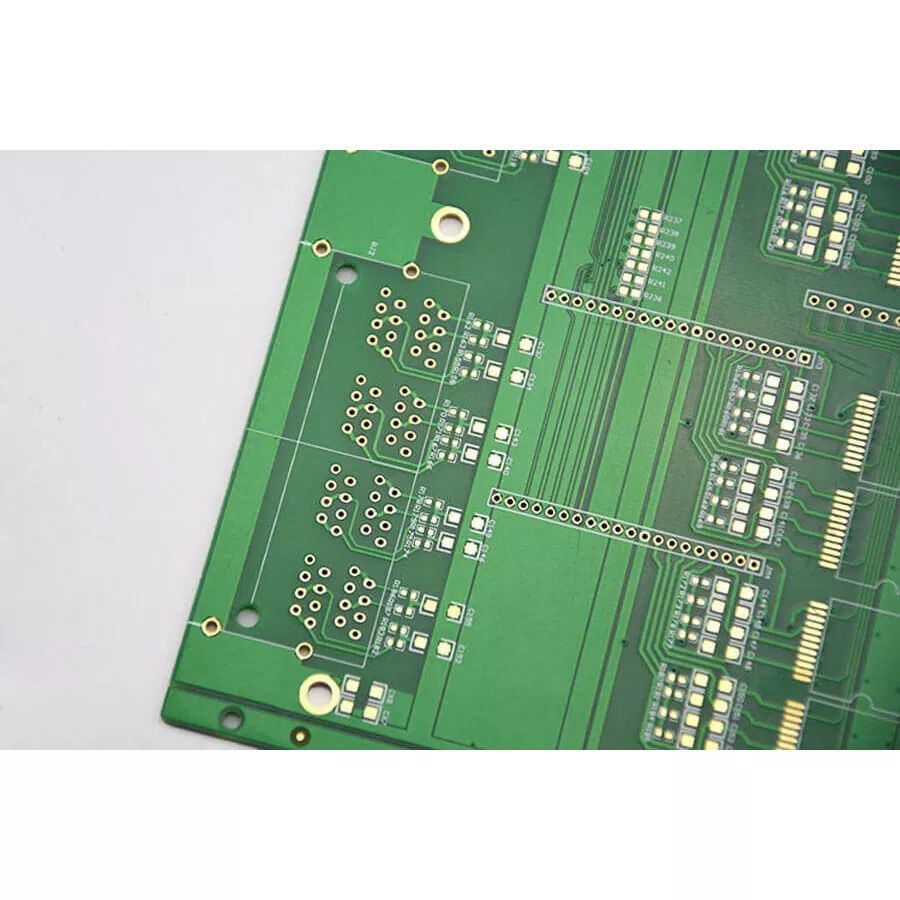

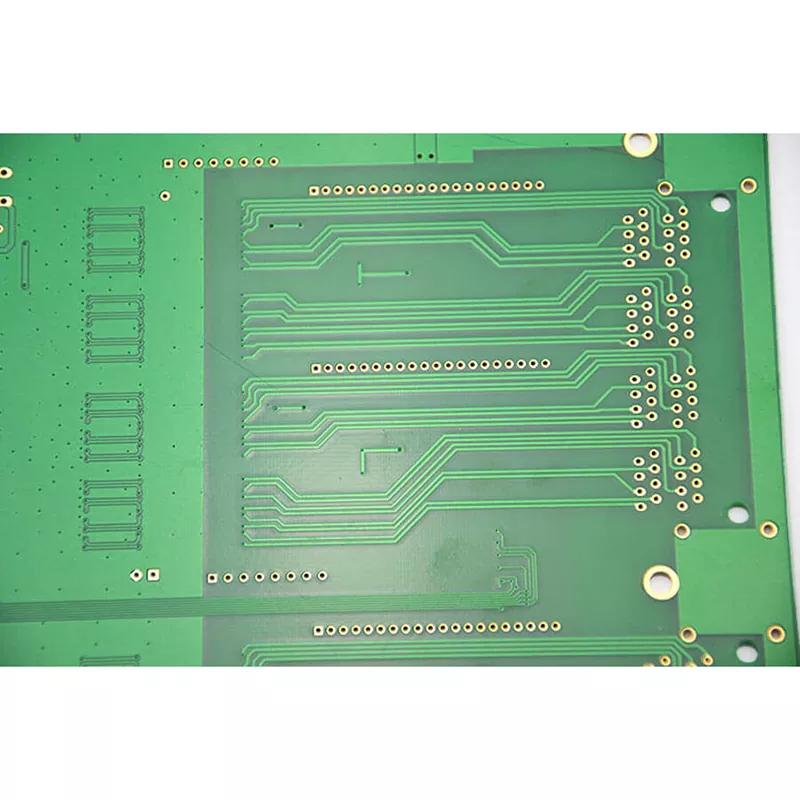

Electrical Muscle Stimulation Equipment PCB

Electrical muscle stimulation equipment requires precise control of output pulses, current levels, and channel switching. The PCB inside an EMS device connects the microcontroller, stimulation driver, power management circuit, and user control system. Any instability in circuit design may affect pulse accuracy and device consistency.

Aisen Electronics Co., Ltd. manufactures Electrical Muscle Stimulation Equipment PCB for rehabilitation devices, fitness recovery products, and portable stimulation equipment. Our PCB manufacturing focuses on stable signal routing, controlled current paths, compact circuit layouts, and production consistency for long-term device operation.

PCB Design Requirements for EMS Equipment

Unlike ordinary control boards, EMS PCBs need to handle both digital control signals and stimulation output circuits on the same board. The layout must separate sensitive control signals from power sections to reduce interference.

During PCB development, key considerations include:

• Current path design for stimulation output circuits
• Grounding structure to reduce electrical noise
• Component placement for stable signal transmission
• Protection design for power and control circuits

These factors directly affect stimulation accuracy and product operating stability.

Controlled Circuit Design for Pulse Output Systems

The core function of an EMS device is generating controlled electrical pulses. The PCB must maintain stable connections between the control chip, driver circuit, and output interface.

Aisen Electronics supports PCB structures with:

These capabilities support compact EMS designs with multiple control channels and integrated electronic functions.

PCB Structure for Portable EMS Devices

Many EMS products are designed as handheld or wearable devices. Limited internal space requires higher circuit density without affecting assembly reliability.

For compact EMS equipment, Aisen Electronics provides:

• Multilayer PCB structures for integrated circuits
• HDI technology for smaller component layouts
• Fine-line routing for high-density designs
• Flexible PCB options for space-restricted assemblies

These manufacturing capabilities allow designers to integrate stimulation control, charging circuits, displays, and wireless modules into smaller product housings.

Manufacturing Process Control

Electrical Muscle Stimulation Equipment PCB production requires stable manufacturing accuracy because circuit variation can influence product performance.

Our production process includes:

Material inspection
→ Inner layer circuit formation
→ Layer alignment and lamination
→ Precision drilling
→ Copper plating
→ Circuit pattern formation
→ Surface treatment
→ AOI inspection
→ Electrical testing

For multilayer boards, layer registration and copper thickness are carefully controlled to maintain connection reliability between internal circuits.

Materials and Surface Finishes

Different EMS products have different requirements depending on operating environment and assembly methods.

The suitable surface treatment is selected according to component type, soldering process, and expected product lifespan.

PCBA Manufacturing for EMS Products

Aisen Electronics also provides PCB assembly services for EMS equipment manufacturers.

Assembly capability includes:

• SMT component placement
• Microcontroller assembly
• Power management circuit assembly
• Functional testing
• Production batch support

Components from small packages such as 01005 chips to larger IC packages can be handled according to product requirements.

Quality Inspection During Production

For EMS applications, PCB defects may affect device control accuracy. To reduce production risks, each batch follows defined inspection procedures.

Production records are maintained for each batch to support quality tracking.

Applications

EMS PCB boards are used in:

EMS PCB vs General Control PCB

FAQ

What PCB layer structure is commonly used for EMS equipment?

Most EMS products use 2-layer to 8-layer PCBs. More complex devices with multiple channels or communication modules may require multilayer structures.

Why does EMS equipment require impedance control?

Impedance control helps maintain signal consistency in sensitive control circuits and reduces interference between different circuit sections.

Can you manufacture small-size EMS PCB boards?

Yes. Aisen Electronics supports HDI manufacturing and fine-line routing for compact EMS devices.

Do you provide EMS PCBA assembly?

Yes. We provide PCB fabrication, component assembly, testing, and production support.

What information is needed for EMS PCB production?

Customers usually provide Gerber files, BOM, PCB specifications, assembly requirements, and production quantity.

Contact Aisen Electronics

Aisen Electronics Co., Ltd. provides PCB manufacturing and assembly services for EMS equipment manufacturers.

With experience in multilayer PCB fabrication, HDI manufacturing, and electronic assembly, we support customers developing rehabilitation devices, fitness products, and portable stimulation equipment.
