High quality Medical Electronics PCB and PCBA from a reliable China manufacturer
Medical equipment depends on electronic systems that can collect accurate signals, process complex data, and maintain stable operation over long service periods. From patient monitoring devices and diagnostic instruments to medical imaging systems and portable healthcare equipment, the PCB inside the device directly affects signal accuracy, communication stability, and overall equipment reliability.
Shenzhen Aisen Electronics Co., Ltd. provides Medical Electronics PCB and PCBA manufacturing solutions for medical equipment manufacturers worldwide. With capabilities covering rigid PCB, HDI PCB, rigid-flex PCB, high-frequency PCB, and PCBA assembly, Aisen supports medical electronics projects requiring high-density circuits, precise signal processing, and consistent mass production.
Medical PCB manufacturing is different from ordinary electronic PCB production. Medical devices often contain sensitive sensors, precision measurement circuits, communication modules, and control units. The PCB needs to maintain electrical stability while minimizing signal interference and supporting long-term operation.
Understanding the Role of PCB in Medical Electronic Systems
A medical electronic device usually works through three stages: signal acquisition, data processing, and output control.
1
Signal Acquisition
The sensor section collects physiological or environmental information, such as heartbeat signals, blood pressure changes, temperature variation, or imaging data. These signals are often weak and require accurate amplification and filtering.
2
Data Processing
The control section uses processors such as MCU, DSP, or embedded systems to analyze the collected information. The PCB provides electrical connections between processors, memory, communication modules, and power management circuits.
3
Output Control
The output section controls displays, alarms, motors, communication interfaces, or treatment-related functions. The PCB is not only a connection platform but also a key component determining signal quality, power stability, and system reliability.
Aisen develops Medical Electronics PCB and PCBA based on these requirements, including multilayer design, signal separation, impedance control, thermal management, and precision manufacturing.
Medical Electronics PCB Applications and Manufacturing Requirements
Different medical devices have different PCB requirements. Imaging systems focus on high-speed data processing, monitoring equipment requires low-noise signal acquisition, while wearable medical products require compact and flexible circuit structures.
| Medical Device Application | PCB Function Inside Equipment | Main Technical Requirements | Recommended Aisen Solution |
|---|---|---|---|
| CT Scanner Electronic Module | Controls image acquisition, signal processing, communication | High-density routing, stable signal transmission | Multilayer PCB, HDI PCB |
| MRI Control System PCB | Supports imaging control and communication | Low interference, high reliability | High-density multilayer PCB |
| Ultrasound Equipment PCB | Processes sensor signals and image data | Low-noise circuit design, analog/digital separation | Multilayer PCB with controlled routing |
| ECG Monitoring PCB | Collects and processes heart electrical signals | Signal accuracy, EMI control, stable power | Precision PCB and PCBA assembly |
| Blood Pressure Monitor PCB | Controls pressure sensors and measurement circuits | Compact size, low power consumption | HDI PCB, fine-pitch SMT |
| Blood Glucose Monitor PCB | Processes biochemical sensor signals | High measurement accuracy, reliable connection | Miniaturized PCB solutions |
| Wearable Medical Device PCB | Supports portable health monitoring | Flexible structure, lightweight design | Rigid-flex PCB |
| Laboratory Equipment PCB | Controls sensors, motors, and testing functions | Long operating time, stable control | Industrial-grade PCB and PCBA |
Key PCB Design Considerations for Medical Electronics
Medical PCB design requires balancing electrical performance, mechanical structure, and manufacturing reliability.
Signal Integrity & Noise
Many medical devices process low-level analog signals. External electromagnetic interference or poor PCB layout may affect measurement accuracy.
Key considerations:
- Grounding designReduces interference
- Layer stack-upSeparates sensitive signals
- Impedance controlStable communication
- Circuit isolationPrevents interference
Miniaturization & HDI
Portable healthcare devices and wearable medical products require smaller electronic structures without reducing functionality.
Aisen HDI capability:
- Laser drill size75μm-150μm
- Min line/space0.05mm/0.05mm
- Layer capability1-40 layers
- PCB typesHDI, rigid, rigid-flex
Thermal Management
Some medical devices operate continuously for monitoring, diagnosis, or laboratory analysis. Heat must be effectively managed.
PCB design factors:
- Copper thicknessUp to 10OZ
- Material selectionTemperature stability
- Layer structureHeat distribution
- Plating qualityReliable connections
Medical PCBA Manufacturing Process
Medical equipment manufacturers often require complete electronic assembly support rather than PCB fabrication alone. Shenzhen Aisen Electronics Co., Ltd. provides integrated Medical Electronics PCB and PCBA services covering PCB manufacturing, component sourcing, SMT assembly, inspection, and testing.
Production process & quality control:
- PCB fabricationLayer alignment, copper thickness, accuracy
- Component inspectionAuthentication & specification verification
- SMT assemblyPlacement accuracy & solder quality
- AOI inspectionAutomatic defect detection
- X-ray inspectionHidden solder joints (BGA)
- Electrical testingCircuit performance verification
PCBA production capability:
- Min component size01005 chip
- Standard size0201 chip
- BGA assemblySupported
- SMT precisionHigh-density placement
- Inspection equipmentAOI, AVI, X-ray, electrical
Medical PCB Manufacturing Capability at Aisen Electronics
Shenzhen Aisen Electronics Co., Ltd. operates a 50,000-square-meter manufacturing facility equipped with advanced PCB production equipment, including laser drilling machines, CNC drilling systems, automated electroplating lines, LDI exposure machines, AOI inspection equipment, and electrical testing systems.
Manufacturing Capability
- PCB TypeRigid, HDI, Rigid-flex
- Layer Count1-40 layers
- Max PCB Size730mm × 630mm
- Mechanical Drill0.15mm-6.5mm
- Laser Drill75μm-150μm
- Max Copper Thickness10OZ
- Min Line Width/Spacing0.05mm/0.05mm
Quality Management
ISO9001, ISO14001, IATF16949 systems. Inspection equipment includes impedance testers, high-current testers, X-ray, AOI, and metallographic analysis.
Quality Objectives:
- Product yield≥99.8%
- On-time delivery≥99%
- Complaint rate≤0.5%
Medical Electronics PCB Selection Guide
When selecting a PCB supplier for medical equipment projects, engineers should evaluate PCB structure according to application requirements.
Portable monitoring device
HDI PCB or rigid-flex PCB
Imaging equipment
Multilayer PCB with high signal integrity
Sensor-based medical equipment
Low-noise multilayer PCB
Power-related medical equipment
Thick copper PCB
Complex diagnostic equipment
Multi-layer PCB with advanced testing
Long-term production projects
PCB and PCBA integrated manufacturing
Why Medical Electronics Manufacturers Choose Aisen
Shenzhen Aisen Electronics Co., Ltd. combines PCB manufacturing experience, advanced production equipment, and quality management systems to support medical electronics manufacturers from prototype development to mass production.
HDI & Rigid-Flex
High-density & flexible solutions
1-40 Layer
Multilayer manufacturing capability
PCBA Assembly
Complete SMT & testing services
Our experience covers complex PCB requirements including high-density interconnection, rigid-flex structures, multilayer circuit design, and precision PCBA assembly. For diagnostic equipment, monitoring systems, laboratory instruments, and healthcare electronics, Aisen provides Medical Electronics PCB and PCBA solutions focused on manufacturing consistency, electrical reliability, and long-term supply capability.
- View as

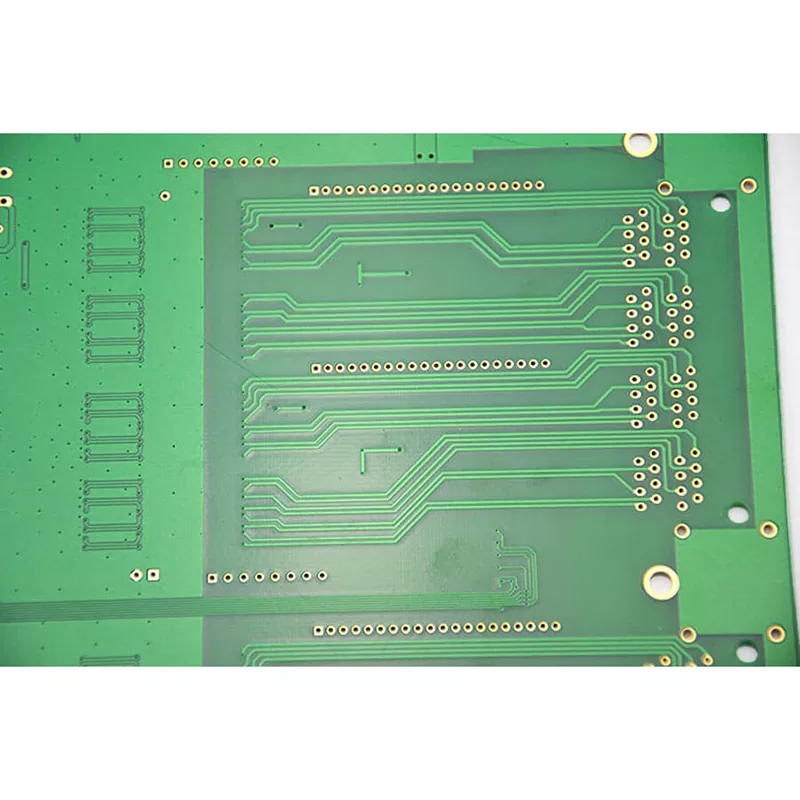

Electrical Muscle Stimulation Equipment PCB
Are you creating inventive wellness innovation or restorative recovery gadgets? Our Electrical muscle stimulation equipment pcb conveys the exactness and unwavering quality your items request. We get it that EMS gadgets require modern circuitry to securely provide controlled electrical beats. That's why our specialized fabricating prepare guarantees each board meets the most elevated benchmarks for both execution and security. Whether you're making customer wellness contraptions or proficient helpful gear, our ability in item fabricating gives the establishment for your success.

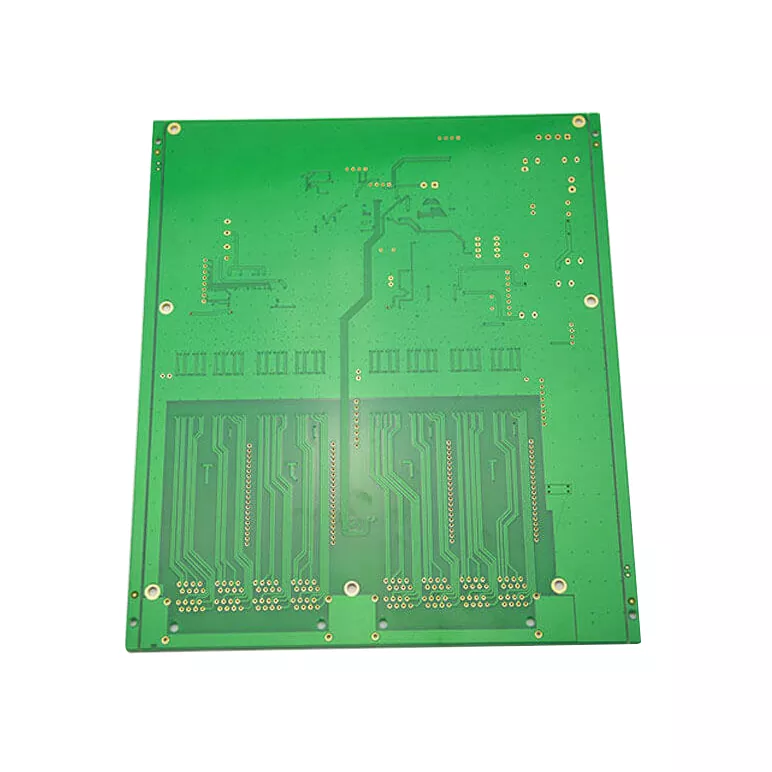

Flow Rate And Dispensing Systems PCB
Are you looking for reliable Flow rate and dispensing systems pcb abricating administrations? At Shenzhen Aisen Electronics Co., Ltd., we specialize in making high-precision circuit sheets planned particularly for stream rate estimation and liquid apportioning applications. Our progressed fabricating capabilities guarantee your frameworks convey precise readings and steady execution over mechanical, therapeutic, and car applications. With over a decade of involvement in exactness PCB fabricating, we get it the basic necessities for stream control electronics.

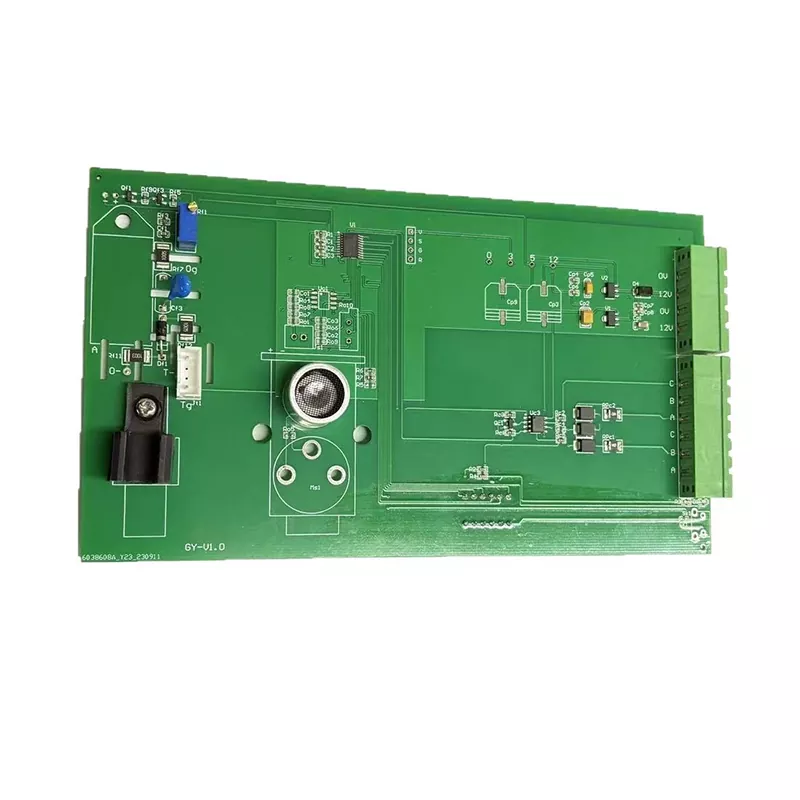

Peristaltic Infusion Technology PCB
Aisen Electronics Co., Ltd. manufactures Peristaltic Infusion Technology PCB solutions designed for medical infusion pumps and fluid control systems. Our PCBs support precise motor control, sensor signal processing, alarm functions, and continuous operation requirements. With multilayer fabrication, controlled impedance design, and strict quality inspection, we help medical equipment manufacturers build stable and accurate infusion devices.

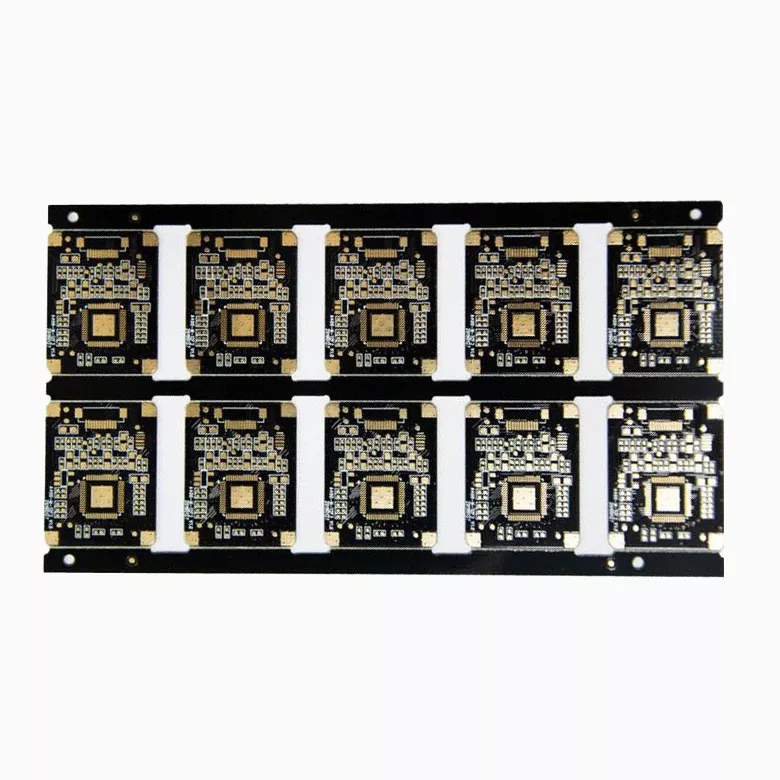

X-Ray Computed Tomography PCB
Aisen Electronics Co., Ltd. provides X-Ray Computed Tomography PCB solutions designed for medical imaging systems requiring stable signal transmission and high-density circuit integration. Our PCBs support CT sensor control, image data processing, and power management with multilayer fabrication, impedance control, HDI technology, and strict quality inspection to help medical equipment manufacturers achieve accurate and reliable imaging performance.

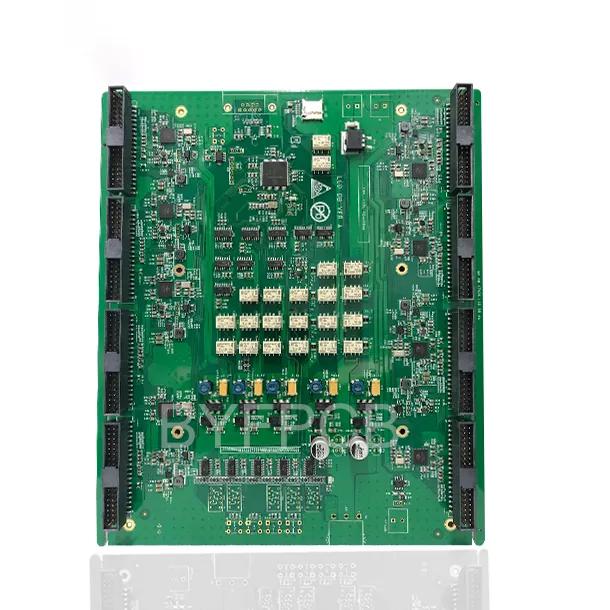

Emg Activity Systems PCB
Are you looking for reliable EMG activity systems pcb arrangements that provide extraordinary flag clarity and biomedical execution? At Shenzhen Aisen Electronics Co., Ltd., we specialize in fabricating high-precision printed circuit sheets particularly outlined for electromyography applications. Our items meet the exacting necessities of restorative gadgets, guaranteeing precise muscle action checking and prevalent quiet security. With over a long time of involvement in biomedical hardware, we get it the basic significance of flag keenness and clamor decrease in EMG systems.

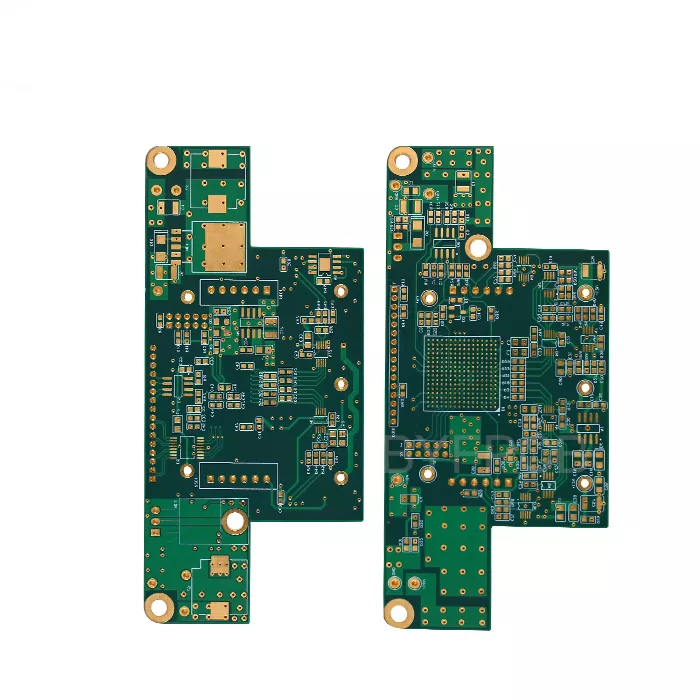

Infusion Fluid Controls PCB Board
Aisen Electronics Co., Ltd. manufactures Infusion Fluid Controls PCB Board, supporting accurate motor control, sensor feedback, alarm circuits, and power management in medical infusion equipment. Our multi-layer PCB solutions are designed for stable signal transmission, compact device integration, and consistent performance in long-duration medical applications.
As a reliable Medical Electronics PCB and PCBA manufacturer and supplier in China, we have our own factory. We provide high-quality PCB manufacturing services with customized solutions for global electronic industries.
