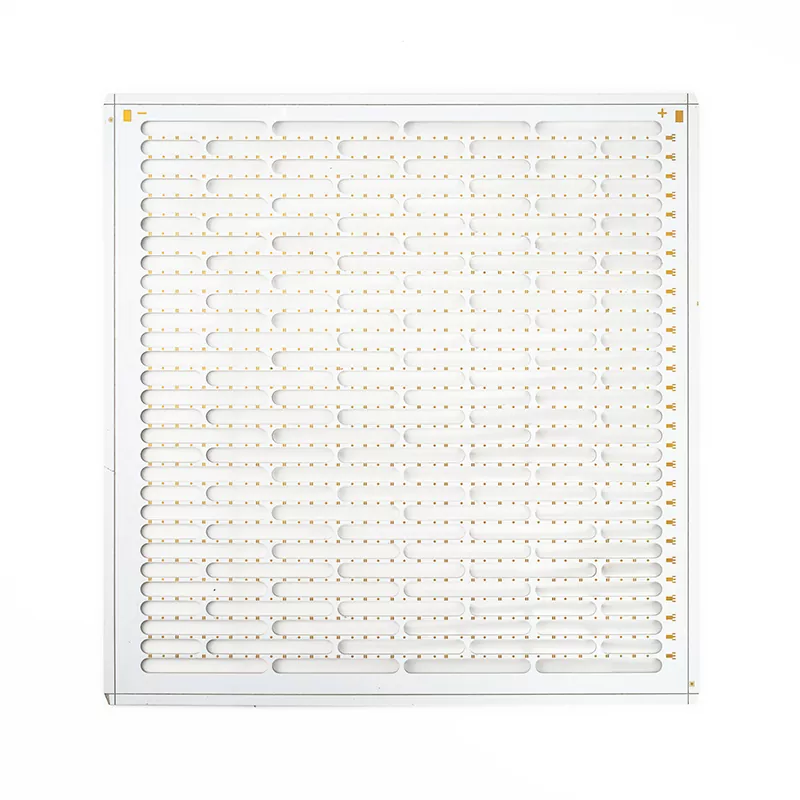

Illumination System LED Lighting PCB

LED lighting systems require more than simple circuit connection. The PCB directly affects brightness consistency, heat dissipation, power efficiency, and product lifetime. Aisen Electronics Co., Ltd. develops LED lighting PCB solutions for applications where electrical stability and thermal control are critical.

From high-power outdoor lighting to compact electronic indicators, our Illumination System LED Lighting PCB designs are optimized according to current load, operating temperature, component layout, and installation environment.

Engineering Considerations for LED Lighting PCB Design

Thermal Management for High-Power LED Applications

Heat is one of the main factors affecting LED lifespan. When LEDs operate at high current, excessive heat accumulation can accelerate lumen degradation and reduce component reliability.

Aisen Electronics focuses on PCB structures that improve heat transfer efficiency through proper copper distribution, thermal via design, and suitable material selection.

For applications requiring higher thermal performance, engineers can evaluate solutions such as thicker copper layers, metal core PCBs, or customized multilayer structures depending on power requirements.

Material Selection Based on Lighting Requirements

Different LED lighting products require different PCB structures.

For low-power LED indicators and consumer electronics, standard FR4 PCBs can provide a cost-effective solution with stable electrical performance.

For high-brightness lighting, automotive lamps, and industrial illumination, thermal performance becomes more important. Aluminum-based PCBs or enhanced copper designs are often considered because they provide better heat dissipation compared with conventional boards.

Aisen Electronics helps customers select suitable PCB materials according to operating temperature, power density, and product lifetime requirements.

Manufacturing Capability for LED Lighting PCB Production

Aisen Electronics Co., Ltd. supports LED PCB production from prototype development to volume manufacturing.

Our manufacturing capability includes single-sided, double-sided, and multilayer PCB production with layer counts from 1 to 32 layers. The production process is controlled through automated inspection and electrical testing to maintain consistency across different production batches.

Typical manufacturing capability includes:

• Maximum board size: 650mm × 750mm
• Copper thickness: up to 6 OZ for high-current designs
• Minimum line width/spacing: 0.076mm
• Impedance tolerance: ±8% for controlled impedance requirements

These capabilities allow us to support various LED applications requiring different electrical and mechanical designs.

LED PCB Manufacturing Process and Quality Control

Every LED lighting PCB passes through controlled manufacturing steps including incoming material inspection, inner layer processing, drilling, copper plating, circuit imaging, solder mask application, surface finishing, AOI inspection, and electrical testing.

For LED applications, electrical reliability is especially important because unstable connections or poor solderability can lead to flickering, brightness variation, or premature failure.

Our inspection process includes:

• Automated Optical Inspection (AOI)
• Electrical testing
• Surface quality inspection
• Final production verification

Surface finishes available include HASL, ENIG, OSP, Immersion Silver, and Immersion Tin to meet different assembly requirements.

PCB Assembly Services for LED Lighting Products

Beyond PCB fabrication, Aisen Electronics provides PCBA manufacturing services for complete LED electronic assemblies.

Our assembly capabilities include component sourcing, SMT placement, through-hole assembly, and functional testing.

The service is suitable for:

• LED driver boards
• Smart lighting controllers
• Industrial lighting modules
• Automotive LED control units
• IoT lighting devices

By combining PCB manufacturing and assembly, customers can simplify supplier management and improve production efficiency.

Applications

Our Illumination System LED Lighting PCB are used in different lighting systems where stable electrical performance is required.

Typical applications include:

Automotive Lighting

LED automotive lighting systems require compact PCB structures, reliable connections, and stable operation under vibration and temperature changes.

Industrial Illumination

Factory lighting and industrial equipment often operate for long hours, requiring PCB designs that can manage continuous heat generation.

Architectural and Commercial Lighting

Lighting systems used in buildings, displays, and commercial environments require consistent brightness and reliable power control.

Smart Lighting Systems

IoT-based lighting products combine LEDs with sensors, wireless modules, and control circuits, requiring compact PCB layouts and accurate signal transmission.

Why Choose Aisen Electronics for LED Lighting PCB Manufacturing

Aisen Electronics Co., Ltd. combines PCB manufacturing experience with engineering support for lighting applications.

Our team assists customers during the design stage by reviewing PCB layouts, material selection, thermal considerations, and manufacturing feasibility. Through DFM analysis, potential production issues can be identified before mass production, helping reduce redesign costs and improve manufacturing efficiency.

Whether you need prototype quantities or continuous production support, we provide LED PCB solutions based on your electrical requirements, application environment, and production goals.

FAQ

What type of PCB is commonly used for LED lighting?

The PCB type depends on LED power requirements. Standard FR4 PCBs are suitable for low-power lighting, while aluminum-based PCBs are often selected for high-power LED applications because of better thermal dissipation.

Why does LED PCB thermal management matter?

LED performance decreases when operating temperatures become too high. Effective PCB thermal design helps reduce heat accumulation and maintain brightness stability over long operating periods.

Can Aisen Electronics produce customized LED PCBs?

Yes. We provide customized Illumination System LED Lighting PCB solutions based on board size, layer count, copper thickness, material requirements, and assembly specifications.

What surface finishes are available for LED PCBs?

Available finishes include ENIG, HASL, OSP, Immersion Silver, and Immersion Tin. The choice depends on assembly method, reliability requirements, and cost considerations.

Do you provide LED PCBA assembly?

Yes. Aisen Electronics provides PCB assembly services including SMT, through-hole assembly, component sourcing, and functional testing.

Contact Aisen Electronics

If you are developing LED lighting products and need PCB solutions with stable electrical performance and effective thermal management, Aisen Electronics Co., Ltd. can provide engineering support from prototype evaluation to volume production.

Email: violet@akesonpcb.com
