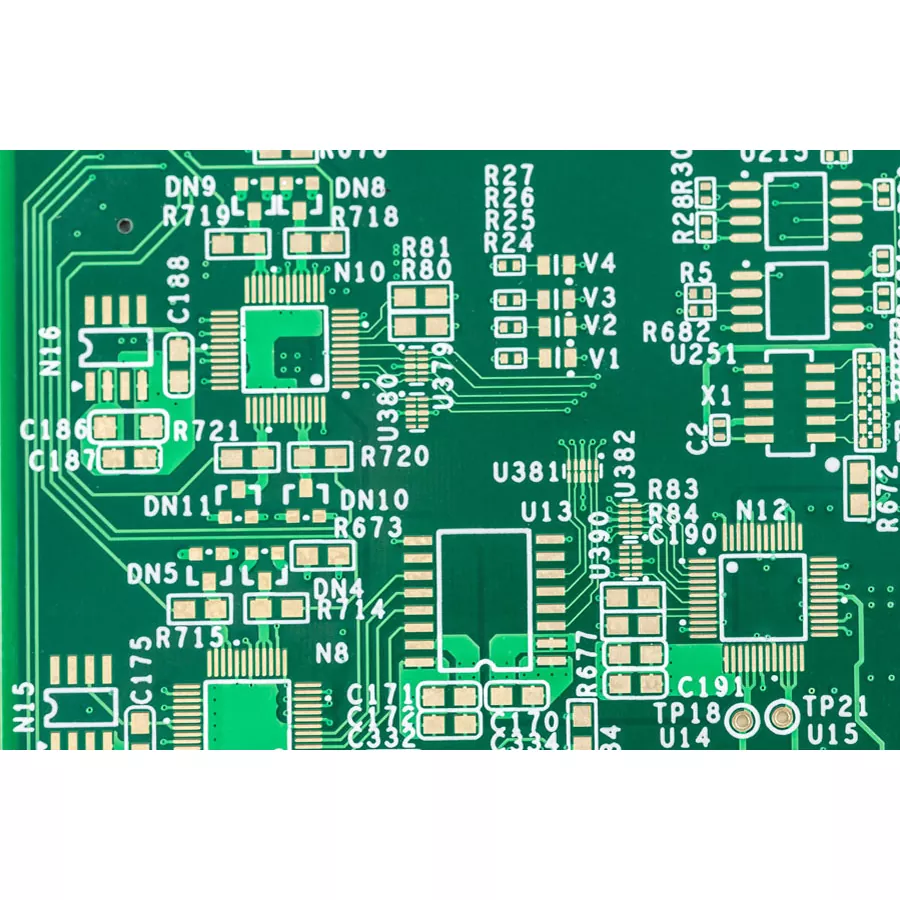

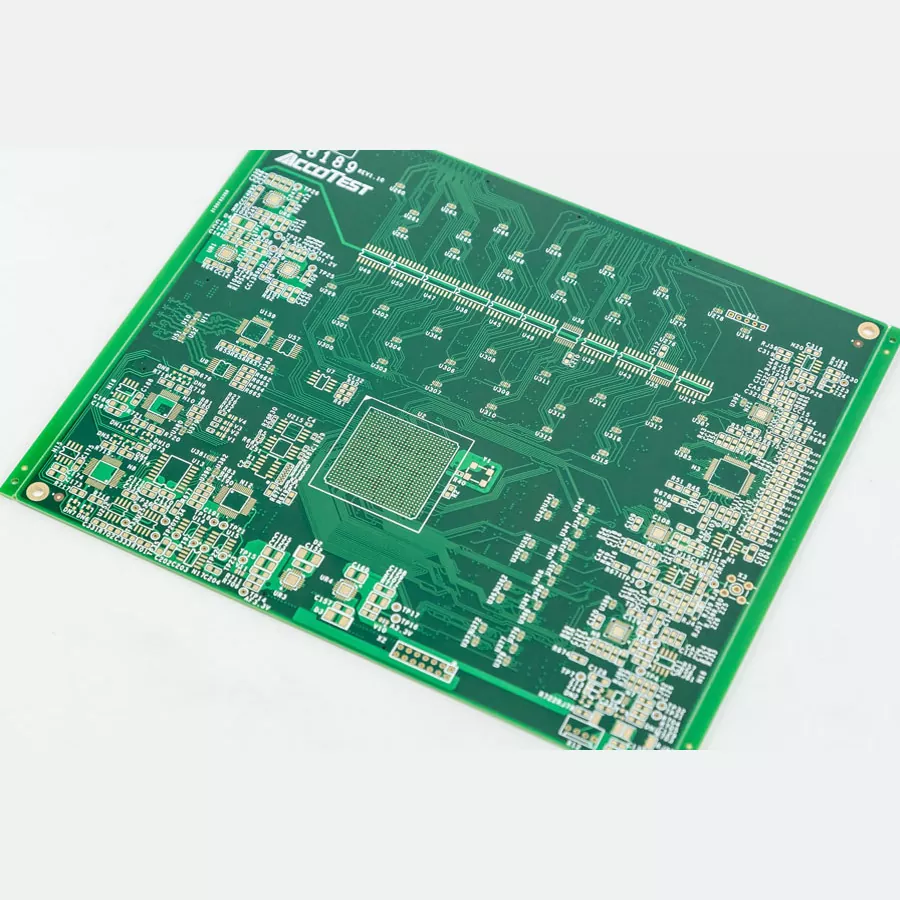

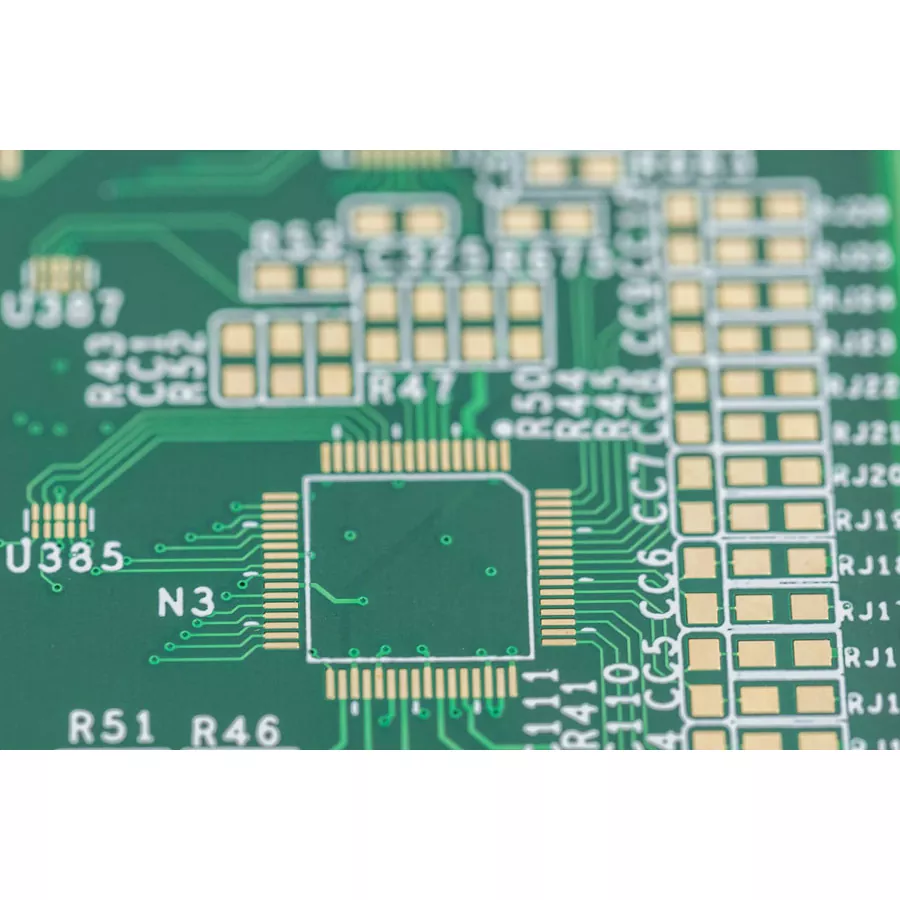

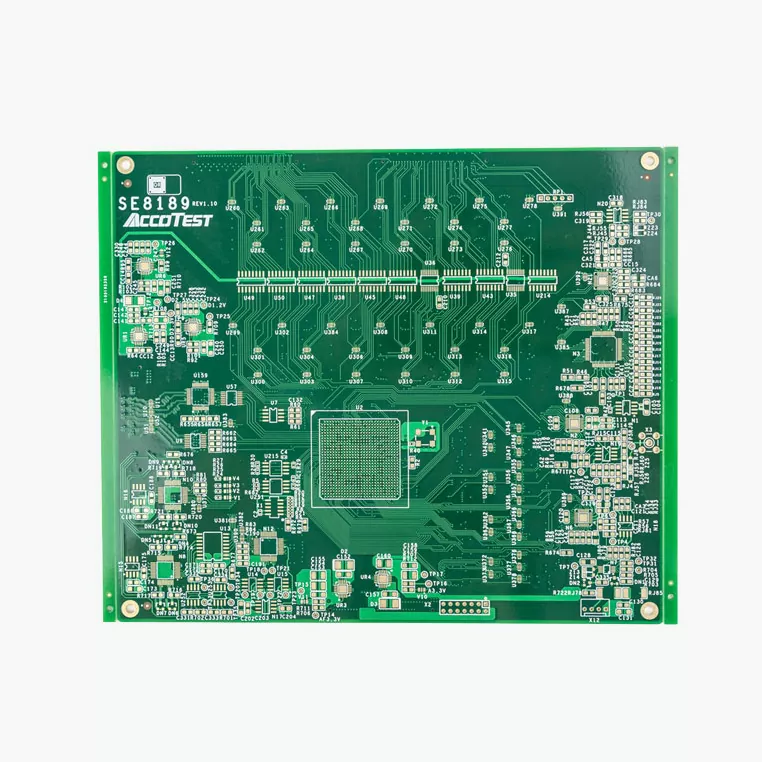

Control System PCB

Control system PCB plays a critical role in industrial equipment by connecting sensors, processors, communication modules, and power control circuits into one reliable electronic platform.

Unlike standard circuit boards, it must maintain stable operation while handling multiple signal types, including analog feedback signals, digital communication, and high-current control outputs. Poor PCB design can lead to signal interference, unstable communication, or unexpected system downtime.

At Aisen Electronics Co., Ltd., we manufacture customized control system PCBs for industrial automation equipment, embedded controllers, motor control systems, and intelligent machines. Our engineering approach focuses on electrical performance, thermal management, signal integrity, and long-term production consistency.

Engineering Considerations Behind Control System PCB Design

A control system PCB is not only a carrier for electronic components. It determines how efficiently the system processes signals, manages power, and communicates with external devices.

During PCB development, engineers need to balance electrical performance, mechanical limitations, and production reliability.

Signal Integrity and Circuit Isolation for Industrial Control

Industrial controllers usually combine different circuit functions on the same PCB, including:

• Sensor signal acquisition
• Microcontroller processing
• Communication circuits
• Power output control

These circuits may interfere with each other if PCB routing is not properly designed.

Aisen Electronics Co., Ltd. supports PCB designs with considerations for:

• Analog and digital signal separation
• Grounding strategy optimization
• Noise reduction layout
• Controlled impedance routing

This helps maintain stable operation in applications where accurate feedback signals are essential.

High Reliability Design for Continuous Industrial Operation

Many control systems operate continuously in factories, machines, and automation equipment where unexpected failure can create production losses.

Our PCB manufacturing supports designs requiring:

• High mechanical reliability
• Thermal performance optimization
• Durable copper structures
• Stable soldering performance

For equipment operating under vibration, temperature changes, or electrical interference, PCB material selection and manufacturing consistency become critical factors.

Communication Interface Support for Smart Control Systems

Modern industrial control platforms often require communication between controllers, sensors, and external networks.

Control system PCBs may integrate interfaces such as:

• RS485 communication
• CAN bus systems
• Ethernet modules
• Industrial communication protocols

For these applications, PCB layout must maintain signal quality through proper routing, impedance control, and EMI consideration.

Applications

Industrial Automation Equipment

Automation machines require reliable PCB assemblies to coordinate motors, sensors, actuators, and control processors.

Our control PCB solutions are used in:

• Factory automation equipment
• Robotic systems
• Machine control units
• Production line controllers

Motor Control and Motion Systems

Motor control applications require accurate signal processing and stable power management.

PCB designs must support:

• Motor driver circuits
• Feedback detection
• Power switching components
• Thermal management

Heavy copper PCB options are available for applications requiring higher current capability.

Embedded Control Devices

Embedded controllers are widely used in smart equipment where PCB size, power consumption, and reliability are important.

Applications include:

• Intelligent machines
• Control terminals
• Monitoring systems
• Industrial IoT devices

PCB Manufacturing Capability for Control Applications

Aisen Electronics Co., Ltd. provides PCB manufacturing capabilities for different control system requirements:

Layer structure:

1-32 layer PCB production

Board thickness:

0.3mm-5.0mm

Copper thickness:

Up to 6oz for high-current applications

Minimum line width:

3mil (0.076mm)

Impedance control:

Standard ±10%, enhanced capability available

Surface finishes:

ENIG, HASL, OSP, immersion silver, hard gold

These capabilities allow us to support both standard control boards and complex multilayer designs.

Manufacturing Quality Control

Control system PCB reliability depends on consistency throughout production.

Our manufacturing process includes:

Incoming material inspection, inner layer verification, drilling control, copper plating monitoring, AOI inspection, electrical testing, and final quality inspection.

For projects requiring higher reliability, we support additional testing requirements based on customer specifications.

Quality control focuses on:

• Circuit continuity
• Insulation performance
• Solderability
• Layer alignment
• Manufacturing consistency

Customized PCB Engineering Support

Control system development often involves balancing performance, cost, and production feasibility.

Our engineering team assists customers with:

• PCB design review
• Stack-up optimization
• Material selection
• DFM analysis
• Prototype verification
• Mass production transition

By participating early in the development process, we help reduce manufacturing risks and improve product reliability.

Why Choose Aisen Electronics Co., Ltd. for Control System PCB Manufacturing

Control system PCB projects require more than fabrication capability. The supplier must understand how PCB performance affects the complete electronic system.

Aisen Electronics Co., Ltd. provides:

• Experience in customized multilayer PCB manufacturing
• Support for industrial control applications
• Engineering assistance from prototype to production
• Flexible production capability for different order volumes
• PCB and PCBA integrated services

We work with equipment manufacturers and electronic developers to build reliable PCB solutions for automation and intelligent control applications.

FAQ

What is the difference between control system PCB and standard PCB?

Control system PCBs usually contain more complex circuits, including signal processing, communication interfaces, and power control sections. They require better signal integrity and reliability.

Can control system PCB support industrial communication interfaces?

Yes. PCB designs can support communication interfaces such as RS485, CAN, Ethernet, and other industrial communication requirements.

Do you manufacture high-current control PCBs?

Yes. We provide heavy copper PCB options up to 6oz for applications requiring higher current capability.

What PCB layers are suitable for industrial controllers?

The layer count depends on circuit complexity. Simple controllers may use 2-4 layers, while advanced industrial systems often require multilayer structures.

Can you provide PCB assembly services?

Yes. We provide PCB fabrication, component sourcing, SMT assembly, testing, and complete PCBA solutions.

How do you improve PCB reliability for industrial environments?

Reliability is improved through proper material selection, manufacturing control, electrical testing, and design optimization based on application conditions.
