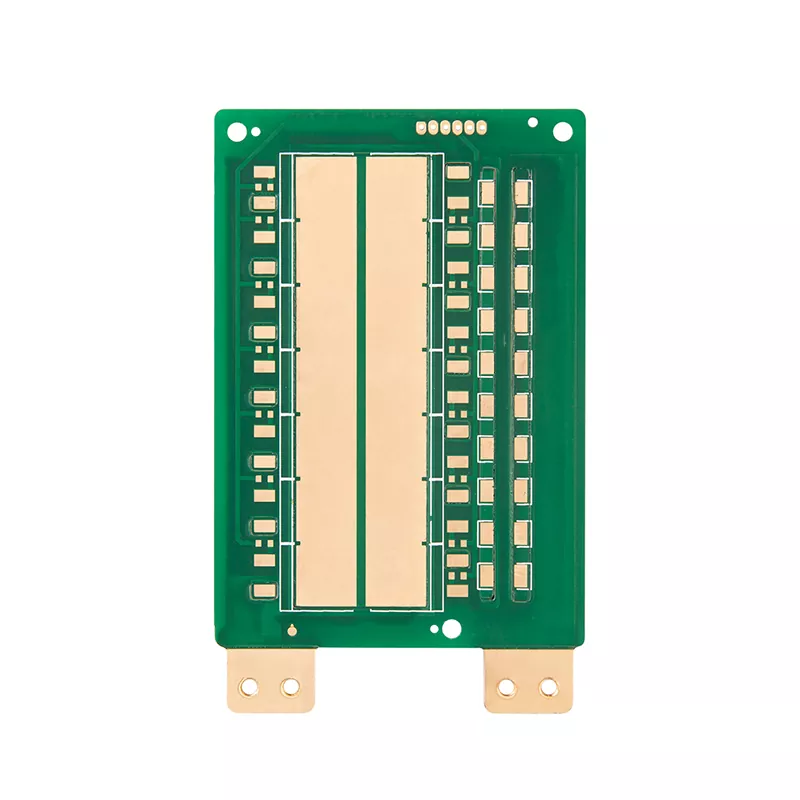

Solar Photovoltaic Panels PCB

Solar electronic systems are designed for long service cycles, often operating for many years with limited maintenance opportunities. Unlike standard consumer electronics, photovoltaic equipment must handle higher power loads, continuous operation, and changing environmental conditions.

The PCB inside solar equipment directly affects system efficiency, safety, and operational stability.

Aisen Electronics focuses on three critical areas during solar PCB manufacturing:

Thermal Management for High-Power Solar Applications

Solar inverters and energy storage systems generate considerable heat during power conversion and charging cycles. Poor heat dissipation can accelerate material aging, reduce component reliability, and cause premature failure.

To improve thermal performance, Solar Photovoltaic Panels PCB can be designed with:

• Heavy copper layers for improved current carrying capability
• Optimized copper trace layouts to reduce resistance loss
• Thermal vias for heat transfer between PCB layers
• High Tg materials for better temperature resistance

These design considerations help maintain stable operation in high-temperature environments.

High Current Reliability for Solar Power Systems

Solar power conversion equipment requires PCBs capable of handling fluctuating current loads. Excessive current density may increase heat generation and create reliability risks.

For high-current solar applications, Aisen Electronics supports:

• Copper thickness up to 6oz
• Wide power traces
• Low resistance circuit design
• Multilayer power distribution structures

These technologies are commonly applied in solar inverter control boards, battery management systems, and power monitoring equipment.

Environmental Protection for Outdoor Solar Equipment

Photovoltaic systems are often installed in outdoor environments where PCBs may face humidity, temperature cycling, dust, and corrosion risks.

Depending on application requirements, we provide suitable material and surface treatment options to improve:

• Moisture resistance
• Corrosion protection
• Long-term solder reliability
• Electrical stability

Solar Photovoltaic PCB Applications

Aisen Electronics provides Solar Photovoltaic Panels PCB manufacturing solutions for different renewable energy applications.

Solar Inverter PCB

Solar inverter systems convert DC power generated by photovoltaic panels into usable AC power. Their PCBs require stable electrical performance, effective heat management, and reliable signal transmission.

Our inverter PCB solutions support:

• Multilayer circuit structures
• High-current power sections
• Precise impedance control
• Reliable surface finishes for long-term operation

Energy Storage System PCB

Battery storage equipment requires accurate monitoring and control functions. PCB reliability directly affects battery management performance and system safety.

Our energy storage PCB capabilities include:

• Multi-layer control circuits
• High-density component layouts
• Power management designs
• Thermal optimization solutions

Solar Monitoring System PCB

Smart photovoltaic systems rely on monitoring devices to collect operational data and improve energy management.

For compact monitoring equipment, we provide:

• HDI PCB manufacturing
• Fine-line circuit capability
• Space-saving designs
• Stable signal transmission performance

Technical Capabilities

Aisen Electronics supports customized PCB production from prototype development to mass production.

Multilayer PCB Manufacturing Capability

We manufacture solar application PCBs with:

• Layer count: 1-32 layers
• Maximum board size: 650mm × 750mm
• Board thickness: 0.3mm-5.0mm
• Minimum line width/spacing: 3mil/3mil
• Copper thickness: up to 6oz
• Impedance tolerance: ±8%

These capabilities allow us to support both compact control boards and complex power management systems.

Material Selection for Solar PCB Applications

Different solar applications require different PCB materials.

Common selections include:

High Tg FR-4 PCB

Suitable for:

• Solar inverter control boards
• Industrial photovoltaic systems
• Power conversion equipment

High Tg materials provide improved thermal stability during continuous operation.

Heavy Copper PCB

Suitable for:

• High-current solar applications
• Battery storage systems
• Power distribution modules

Heavy copper structures improve current capacity and reduce heat accumulation.

HDI PCB

Suitable for:

• Smart solar monitoring devices
• Compact controllers
• IoT-enabled photovoltaic equipment

HDI technology allows more compact circuit designs while maintaining signal performance.

Solar PCB Manufacturing Process

Solar PCB production requires precise control throughout every manufacturing stage.

Engineering Review and Design Verification

Before production, our engineering team reviews PCB files, material selection, layer structures, and manufacturing requirements.

Key considerations include:

• Current capacity evaluation
• Thermal design review
• Stack-up optimization
• Manufacturing feasibility analysis

Precision PCB Fabrication

The manufacturing process includes:

• Inner layer imaging and etching
• Layer lamination
• CNC drilling
• Copper plating
• Surface finishing
• Electrical testing

Each process is monitored through quality control procedures to maintain production consistency.

Testing and Quality Control

Before shipment, solar PCBs undergo inspection procedures including:

• AOI inspection
• Electrical testing
• Impedance testing when required
• Surface quality inspection

These testing processes help ensure stable performance for renewable energy applications.

Surface Finish Options for Solar PCBs

Different environments and application requirements require suitable surface protection.

ENIG Surface Finish

Electroless Nickel Immersion Gold provides:

• Good corrosion resistance
• Stable solderability
• Long storage capability

It is widely used for high-reliability solar electronic assemblies.

OSP Surface Finish

OSP provides a cost-effective solution for applications requiring reliable solder performance with controlled manufacturing costs.

Immersion Silver Surface Finish

Immersion silver offers good electrical conductivity and is suitable for applications requiring efficient signal and power transmission.

PCBA Assembly Services for Solar Electronics

Besides PCB fabrication, Aisen Electronics provides complete PCBA manufacturing services.

Our capabilities include:

• Component sourcing
• SMT assembly
• Through-hole assembly
• Functional testing
• Final assembly support

We support component placement from 01005 packages to larger power components, helping customers simplify their supply chain from PCB production to finished electronic modules.

How to Select the Right PCB for Solar Applications?

Choosing the correct PCB depends on the electrical requirements, installation environment, and expected service life.

For solar inverter applications, engineers usually consider:

• Operating voltage and current
• Heat generation level
• PCB material performance
• Required layer structure

For energy storage systems, important factors include:

• Current handling capability
• Thermal management
• Circuit reliability
• Long-term environmental resistance

Aisen Electronics works with customers during the design stage to select suitable PCB structures based on actual application requirements.

Why Choose Aisen Electronics Co., Ltd. for Solar PCB Manufacturing?

Aisen Electronics Co., Ltd. combines PCB manufacturing experience with application-focused engineering support for renewable energy industries.

Our advantages include:

• Experience in multilayer and heavy copper PCB production
• Support from prototype to volume manufacturing
• Engineering assistance during PCB design review
• Strict inspection procedures before delivery
• Flexible solutions for different solar applications

We understand that solar electronic systems require more than basic PCB production. Reliable circuit design, suitable materials, and consistent manufacturing quality are essential for long-term renewable energy performance.

Frequently Asked Questions About Solar Photovoltaic PCB

What type of PCB is commonly used in solar inverter systems?

Solar inverter systems usually use multilayer FR-4 PCBs with high thermal resistance and reliable current handling capability. For higher power applications, heavy copper PCB designs are often selected.

Why do solar PCBs need thicker copper layers?

Solar power systems generate significant current during operation. Thicker copper layers help reduce resistance, improve current capacity, and minimize heat generation.

Can solar PCBs be used in outdoor environments?

Yes. Solar Photovoltaic Panels PCB can be designed with suitable materials and surface finishes to improve resistance against humidity, temperature changes, and corrosion.

What PCB technologies are suitable for energy storage systems?

Energy storage systems commonly use multilayer PCBs, heavy copper PCBs, and optimized thermal designs to support power management and battery control functions.

Does Aisen Electronics provide PCB assembly services?

Yes. Aisen Electronics provides PCB manufacturing together with PCBA assembly services, including component sourcing, SMT assembly, testing, and final assembly support.

What information is needed for a solar PCB quotation?

To provide an accurate quotation, customers usually need to provide PCB drawings, Gerber files, layer requirements, material requirements, quantity, and application information.

Contact Aisen Electronics Co., Ltd. for Solar PCB Solutions

Whether you need a prototype solar control board or large-volume production for renewable energy equipment, Aisen Electronics Co., Ltd. provides customized PCB manufacturing solutions based on your electrical, thermal, and reliability requirements.
