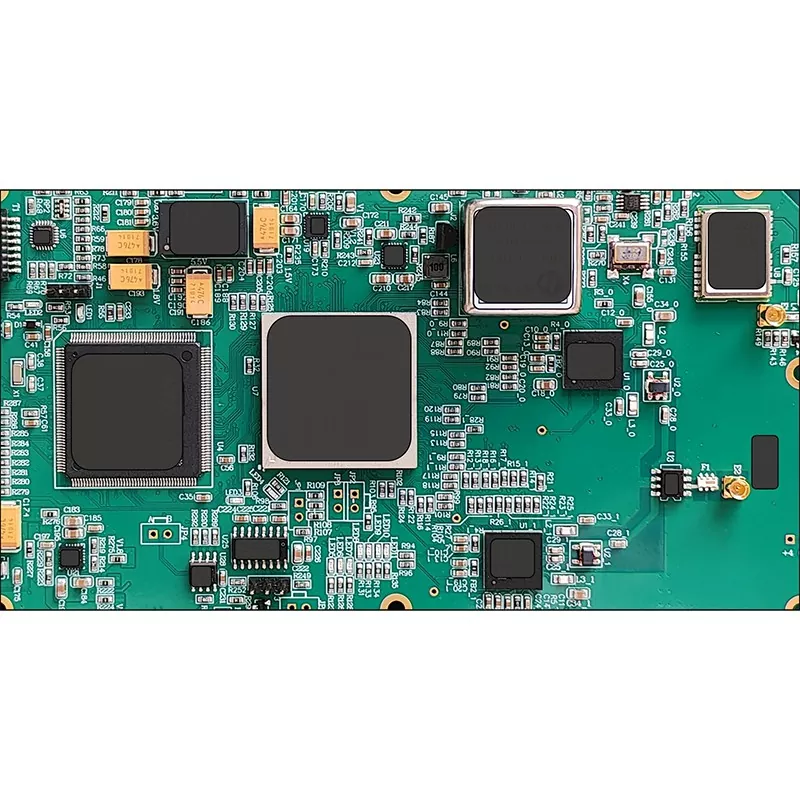

Servo Motor PCB

Servo motor systems are widely used in automation equipment where positioning accuracy, response speed, and long-term stability are critical. The circuit board inside a servo drive acts as the connection platform between power modules, control units, feedback sensors, and communication interfaces, directly affecting system performance.

Shenzhen Aisen Electronics Co., Ltd. specializes in custom Servo Motor PCB manufacturing for industrial automation, robotics, CNC equipment, semiconductor machinery, and precision control systems. With over 20 years of PCB manufacturing experience, Aisen provides reliable PCB and PCBA solutions based on advanced production capability, engineering support, and strict quality management.

Unlike conventional control boards, Servo Motor PCBs need to handle high-frequency switching signals, high current transmission, thermal stress, and sensitive feedback communication. Aisen combines multilayer PCB technology, heavy copper processing, HDI manufacturing capability, and professional testing methods to support demanding motion control applications.

From prototype verification to volume production, Aisen works with global customers to optimize PCB structures, select suitable materials, and manufacture circuit boards that meet industrial reliability requirements.

Solutions for Precision Motion Applications

Servo systems are commonly installed in equipment where even small signal errors or unstable power transmission may influence machine accuracy. The PCB design needs to coordinate multiple functions, including motor drive control, encoder feedback processing, communication transmission, and power management.

Aisen Servo Motor PCB solutions are applied in:

Through optimized circuit layout, controlled impedance design, and reliable manufacturing processes, Aisen helps customers improve equipment stability and operational efficiency.

Manufacturing Capability and Production Strength

Shenzhen Aisen Electronics Co., Ltd. operates a 50,000㎡ manufacturing facility with 20 production lines and annual production capacity of approximately 2 million square meters of circuit boards.

The company focuses on high-precision PCB manufacturing, including 1-40 layer rigid PCBs, rigid-flex boards, HDI boards, high-frequency boards, aluminum-based PCBs, and heavy copper boards.

Aisen production capability includes:

With advanced manufacturing equipment, including high-precision CNC drilling machines and automated inspection systems, Aisen supports both prototype development and large-scale production.

Electrical Performance and Design Considerations

Servo control applications combine power circuits and sensitive electronic signals in a limited PCB space. A reliable design requires careful consideration of current capacity, signal transmission, heat dissipation, and electromagnetic compatibility.

Power Circuit and Current Handling

Servo drives frequently experience rapid current changes during acceleration, braking, and load variation. If PCB copper design is insufficient, excessive heat generation may affect system reliability.

Aisen supports heavy copper PCB manufacturing with copper thickness up to 6 oz. This technology improves current carrying capability and helps maintain stable operation in power-intensive applications.

Engineering evaluation includes copper thickness selection, trace width calculation, via structure optimization, and power distribution design to meet specific operating conditions.

Feedback Signal and Communication Reliability

Servo systems depend on accurate feedback signals from encoders and sensors. Poor routing or electromagnetic interference may reduce positioning accuracy or affect communication stability.

Aisen provides PCB solutions supporting:

• Encoder feedback circuits
• CAN communication
• RS485 interfaces
• Industrial Ethernet connections
• High-speed signal transmission

Through optimized layer stack-up, grounding structure, impedance control, and signal separation design, Aisen helps maintain reliable communication between controllers, drives, and motors.

Thermal Control for Long-Term Operation

Continuous operation in industrial environments generates heat from power components and switching devices. Effective thermal management is important for maintaining PCB performance and extending equipment service life.

Aisen applies different thermal design methods according to application requirements, including heavy copper layers, thermal vias, copper balance optimization, and suitable material selection.

For high-temperature environments, engineers may recommend high-TG materials or customized PCB structures to improve thermal resistance.

Material Selection According to Application Conditions

Different servo systems have different electrical and environmental requirements. Aisen provides material recommendations according to working temperature, power demand, signal frequency, and expected lifetime.

Controlled Manufacturing Process

Servo circuit boards integrate power transmission, control signals, and communication functions. Each manufacturing stage requires strict process control to ensure electrical performance and production consistency.

Engineering Review Before Production

Before manufacturing begins, Aisen engineers review customer design files, including Gerber files, PCB specifications, stack-up requirements, and BOM information.

The engineering review evaluates:

• Circuit manufacturability
• Signal routing structure
• Thermal design
• Power distribution
• Production feasibility

This process helps identify potential manufacturing risks before mass production.

Precision Circuit Formation

For multilayer boards, inner layers are produced through precision imaging, etching, and inspection processes.

Advanced production control ensures:

• Accurate circuit patterns
• Stable layer alignment
• Reliable electrical connection

AOI inspection is performed during production to detect potential defects at an early stage.

Layer Bonding and Hole Processing

Multilayer structures are bonded under controlled temperature and pressure conditions.

CNC drilling technology is used to create reliable through holes and vias, ensuring proper connection between PCB layers.

For complex designs, precision drilling helps achieve compact routing and improved electrical performance.

Copper Plating and Surface Treatment

Copper plating builds reliable connections between PCB layers and improves current transmission capability.

Aisen controls copper thickness consistency throughout production. Available surface finishes include ENIG, HASL, OSP, Immersion Silver, and Immersion Tin according to customer requirements.

Inspection and Electrical Verification

Before shipment, each board undergoes comprehensive inspection procedures.

Testing includes:

• AOI inspection
• Flying Probe Testing
• Electrical Continuity Testing
• Dimensional Inspection
• Final Appearance Inspection

These quality checks ensure delivered products meet customer specifications.

Integrated PCB Assembly Services

Besides PCB fabrication, Shenzhen Aisen Electronics Co., Ltd. provides complete PCBA manufacturing services to help customers simplify supplier management.

The assembly capability includes SMT placement, through-hole assembly, component sourcing, and functional testing.

Aisen supports:

This integrated manufacturing model allows customers to move efficiently from prototype validation to commercial production.

Engineering Support for Customized Projects

Every servo system has different requirements depending on motor type, working environment, control method, and power level.

Aisen provides engineering support throughout the development process, including PCB stack-up optimization, material selection, power circuit improvement, and manufacturing feasibility analysis.

For high-performance motion control applications, engineers evaluate:

• Current requirements
• Heat dissipation conditions
• Signal interference risks
• Communication requirements
• Production reliability

This cooperation helps customers reduce development risks and improve product consistency.

Quality Management Throughout Production

Servo applications usually operate in industrial environments where PCB reliability directly affects equipment performance.

Shenzhen Aisen Electronics Co., Ltd. follows ISO9001, ISO14001, and IATF16949 quality management systems throughout manufacturing.

The company maintains strict quality objectives:

Quality management covers incoming material inspection, production monitoring, and final product verification.

Why Global Customers Choose Aisen

With more than 20 years of PCB manufacturing experience, Shenzhen Aisen Electronics Co., Ltd. provides reliable manufacturing support for industrial electronics customers worldwide.

Aisen advantages include:

Advanced Manufacturing Infrastructure

The company owns a large-scale PCB production facility with advanced equipment, multiple production lines, and professional inspection systems.

Experience in High-Reliability Applications

Aisen PCB products are used in automotive electronics, industrial control systems, 5G communication equipment, energy storage modules, medical equipment, and intelligent manufacturing applications.

Flexible Production Capability

Aisen supports:

Prototype production
Small batch orders
Medium-volume manufacturing
Large-scale production

Engineering Collaboration

From initial design review to final production, Aisen works closely with customers to improve PCB performance, manufacturability, and production efficiency.

Frequently Asked Questions

What is a Servo Motor PCB?

A Servo Motor PCB is a specialized circuit board used in servo drive and motion control systems. It manages power distribution, control signals, communication interfaces, and feedback signals required for accurate motor operation.

What type of PCB is commonly used in servo systems?

Servo applications commonly use multilayer PCBs, heavy copper PCBs, HDI boards, and high-TG materials depending on power requirements, circuit complexity, and environmental conditions.

Can Aisen manufacture customized boards for servo applications?

Yes. Shenzhen Aisen Electronics Co., Ltd. provides customized PCB manufacturing based on customer requirements, including layer count, materials, copper thickness, surface finish, and assembly needs.

Does Aisen provide assembly services?

Yes. Aisen provides complete PCBA solutions including PCB fabrication, SMT assembly, component sourcing, testing, and final inspection.

What files are required for quotation?

Customers usually provide:

Gerber files
PCB specifications
Stack-up requirements
BOM files
Assembly drawings
Technical requirements

Can Aisen produce heavy copper designs?

Yes. Aisen supports heavy copper manufacturing with copper thickness up to 6 oz for applications requiring higher current capability and improved thermal performance.

Request a Custom Solution

Shenzhen Aisen Electronics Co., Ltd. provides Servo Motor PCB manufacturing and PCBA assembly solutions for industrial automation, robotics, CNC equipment, and precision motion control systems.

With advanced manufacturing capability, professional engineering support, and strict quality management, Aisen helps global customers develop reliable electronic solutions from prototype to mass production.

Contact Aisen today to discuss your project requirements.
